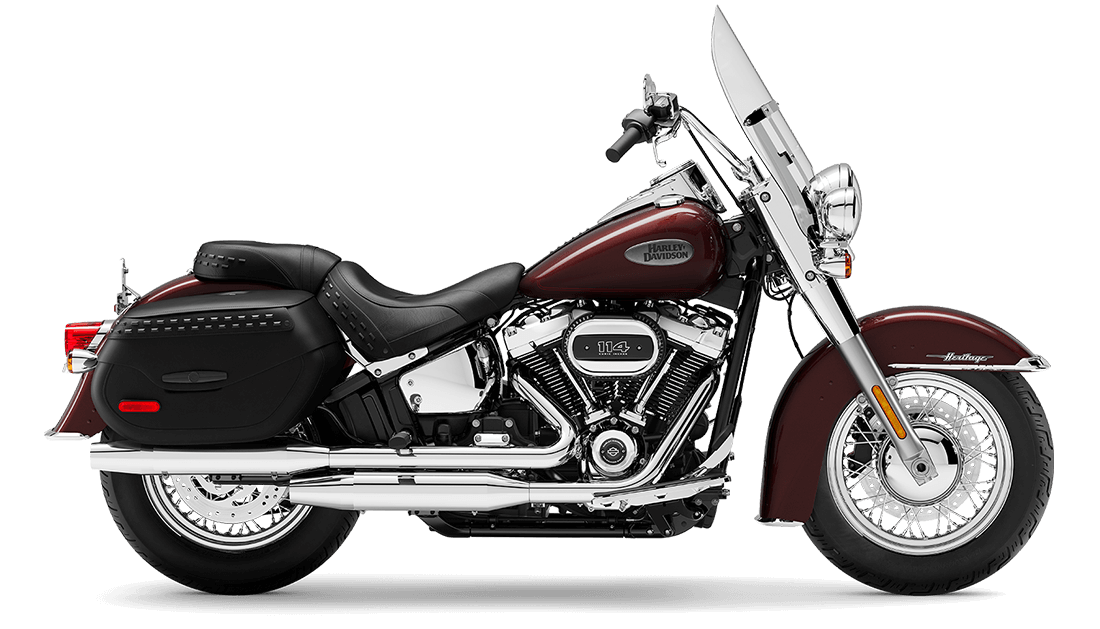

‹ Home › Inventory › 2022 Harley-Davidson® Heritage Classic 114 Midnight Crimson (Chrome Finish w/Laced Wheels)

The dark style, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place.

Specifications

Dimensions

add remove
- Length:

  2415 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  120 mm
- Rake:

  30
- Trail:

  140 mm
- Wheelbase:

  1630 mm
- Tyres, front specifications:

  130/90B16,73H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  18.9 l
- Oil capacity:

  4.4 l
- Weight, as shipped:

  316 kg
- Weight, in running order:

  330.21 kg
- Luggage capacity – volume:

  1.5 cu ft (0.043 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  102 mm
- Stroke:

  114 mm
- Displacement:

  1868 cm³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  161 Nm
- Engine torque (RPM):

  3000
- Horsepower:

  94 HP / 70 kW @ 5020 rpm
- Lean angle, right (deg.):

  27.3
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  5 l/100 km
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  128 g/km CO2
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, optional style type:

  Black or chrome, steel laced (based on trim)
- Wheels, front type:

  Gloss black, 9-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 9-spoke cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
